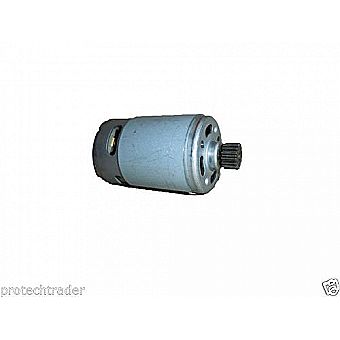

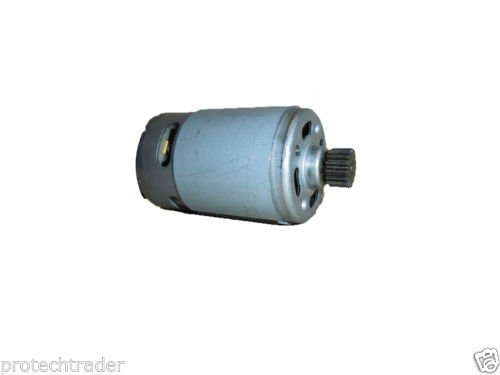

RS-550s 18v (6v - 20v) DC Motor with 15t Gear High Torque Drill Robot

RS-550s 18v (6v - 20v) DC Motor with 15t Gear High Torque Drill Robot

Model NO.: RS-550S

Type: Round DC Carbon Brush Motor Magnet: Anisotropic

Nominal Voltage: 18v

Rated Voltage : 3.6-20V DC

Rotation speed : 3000-24000rpm

Torque: More Than 160g.cm

Excitation Mode: Excited

Power Scope: 42-142W

Mounting Holes: 25mm apart

Shaft Diameter: 3mm

Shaft Length: 9mm

Shaft Style: D-Shaft

Motor Body Diameter: 35mm-37mm

Motor Body Length: 57mm

Weight: 7.8oz

Gear Length: 6.5mm

Gear Width Outside Teeth: 11.5mm

Gear Width Inside Teeth: 9.5mm

Gear Tooth: 15

Major uses : Charging pump, Power Drill, Electric Screwdriver, Spanner, Saw, Sander, DIY, Robotics
